Manual strapping tools provide a practical and cost-effective solution for securing loads with steel or plastic strapping. They are available as separate tensioners and sealers, which use metal seals, or as sealless combination tools, which tension and crimp the steel strap in a single step without the need for seals. These tools are widely used across industries—from light-duty applications with polypropylene (PP) strap to heavy-duty industrial tasks using steel strapping up to 32mm wide—offering versatility, durability, and ease of use in environments without access to power.

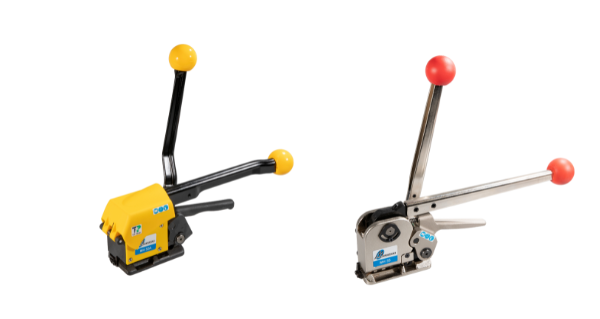

MH32A & MH35 –Sealless Combination Tool:
The MH32A and MH35 are heavy-duty, manually operated sealless strapping tools designed for use with steel strapping in demanding industrial applications. Built for durability, speed, and cost-efficiency, both tools eliminate the need for metal seals by crimping the strap together to form a secure joint.
| Feature | MH32A | MH35 |
|---|---|---|
| Strap Type | Regular duty steel | High-tensile steel |
| Strap Width | 13 mm, 16 mm, 19 mm | 19 mm, 25 mm, 32 mm |
| Strap Thickness | 0.4 – 0.6 mm | 0.6 – 1.0 mm |
| Joint Type | Sealless (crimped) | Sealless (crimped) |
| Seal Efficiency | 80–85% | 80–85% |
| Tool Weight | Approx. 3.7 kg | Approx. 4.5 kg |
| Ideal For | Flat packages (pallets, bales) | Heavy industrial strapping |

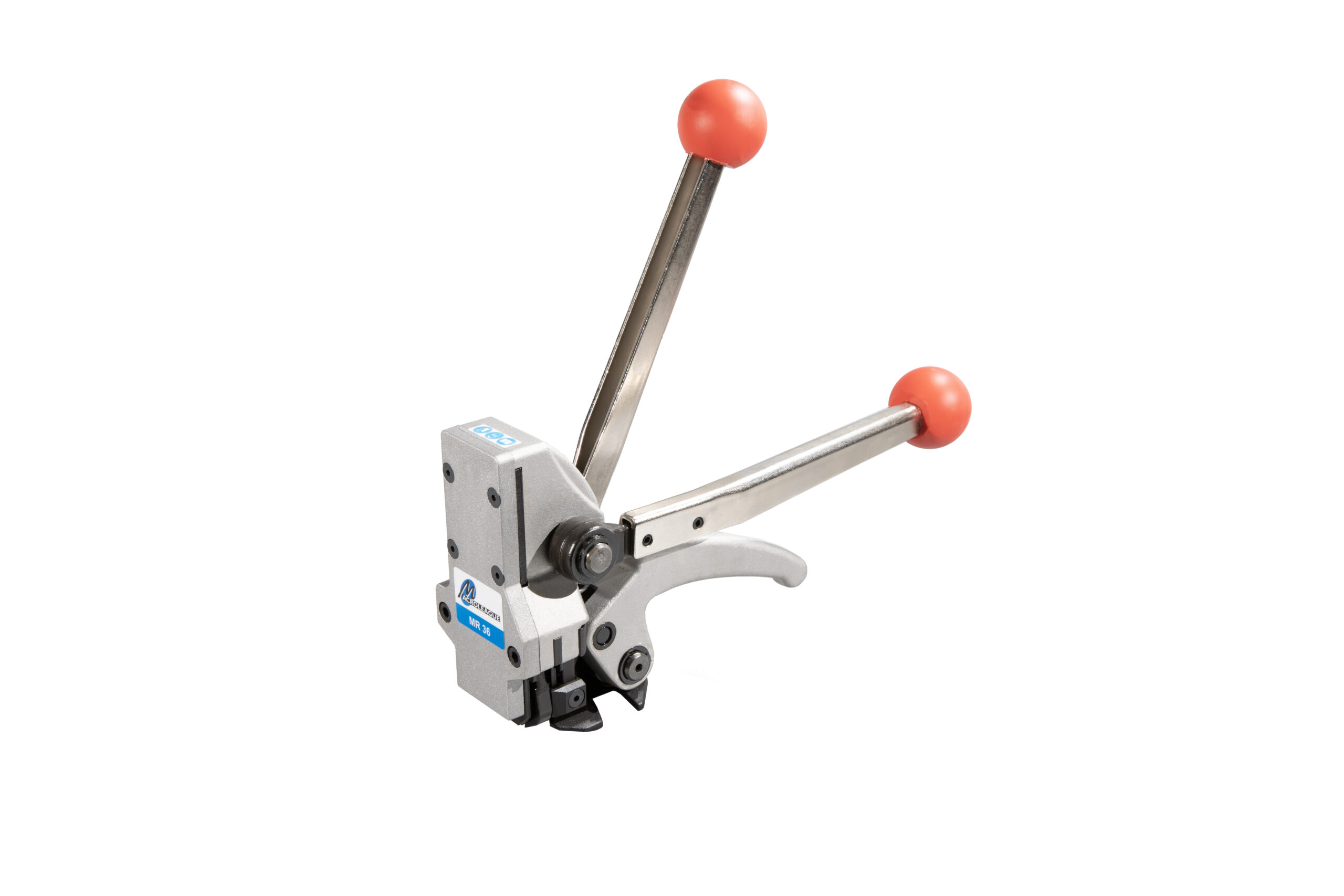

MR36 Manual Pusher-Type Steel Strapping Tool:
The MR36 is a durable, manually operated pusher-type steel strapping tool designed for securing round, irregular, or compressed packages—such as pipes, coils, drums, and bundled materials. Unlike sealless tools, the MR36 uses closed (pusher) seals, making it ideal for applications where the strap must be fed around awkward or curved loads.
| Model | MR36 |
|---|---|
| Weight | 3.5kg |
| Joint type | Single notch (reverse) |
| Sealing strength | 50 ~ 60% |
| Strapping thickness | 0.4mm - 0.6mm |
| Strapping width | 13mm. 16mm. 19mm |
| Steel strapping | Regular duty and High tensile |
| Dimension | 40cm (L) x 10cm (W) x 33cm (H) |

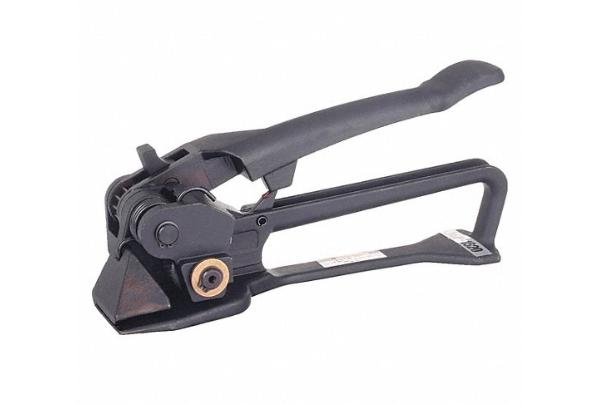

MIP1610 & MIP1620 Manual Pusher-Type Steel Strapping Tool:
The MIP1610 and MIP1620 are manual pusher-type tensioners designed to tension steel strapping securely around various loads. These tools are used in combination with manual sealers to complete the steel strapping process.
| Feature | MIP1610 | MIP1620 |
|---|---|---|
| Strap Width | 13 mm, 16 mm, 19 mm | 19 mm, 25 mm, 32 mm |
| Strap Thickness | 0.4 – 0.6 mm | 0.6 – 1.0 mm |
| Sealing Type | Manual pusher-type metal seal | Manual pusher-type metal seal |
| Tool Weight | Approx. 3.5 kg | Approx. 4.5 kg |
| Applications | Light to medium steel strap sealing on curved or irregular loads | Heavy-duty steel strap sealing on large or heavy curved loads |

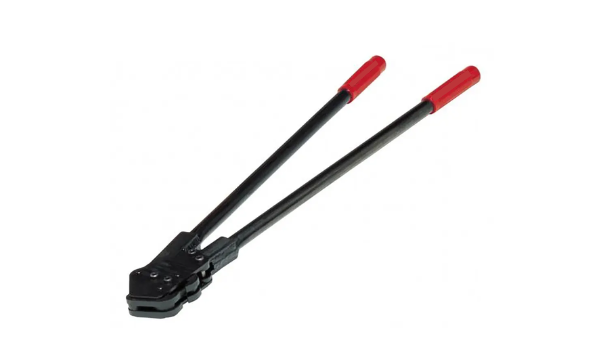

Manual Steel Strapping Sealers for Lap-Over Seals:
Our manual sealers are designed for use with lap-over steel seals and are available in both single notch and double notch models. Engineered for durability and ease of use, they deliver secure, reliable closures for heavy-duty strapping in industrial applications.
| Model / Part Number | Strap Size | Seal Name | Joint Type | Tool weight | |
|---|---|---|---|---|---|
| Width | Gauge | Kg | |||
| mm | mm | ||||
| Manual Front-Action Sealers | |||||
| MIP-1100-12 | 12.7 | 0.38 - 0.58 | S12S02 | Double-notch | 1.4 |
| MIP-1120-12 | 12.7 | 0.38 - 0.58 | S12P02 | Single-reverse notch | 1.4 |
| MIP-1152-12 | 12.7 | 0.58 - 0.78 | S12S02 | Double-notch | 1.8 |
| MIP-1100-58 | 15.9 | 0.38 - 0.58 | S58S02 | Double-notch | 1.4 |
| MIP-1120-58 | 15.9 | 0.38 - 0.58 | S58P02 | Single-reverse notch | 1.4 |
| MIP-1152-58 | 15.9 | 0.58 - 0.79 | S58S02 | Double-notch | 1.8 |
| MIP-1100-34 | 19 | 0.38 - 0.58 | S34S02 | Double-notch | 1.3 |
| MIP-1120-34 | 19 | 0.38 - 0.58 | S34P02 | Single-reverse-notch | 1.3 |
| MIP-1152-34 | 19 | 0.58 - 0.79 | S34S02 | Double-notch | 1.8 |
| Manual Side-Action Sealers | |||||
| MIP-3000-34 | 19 | 0.64 - 0.89 | S34S03, S34P03 | Single-notch | 4.1 |
| MIP-3000-114 | 31.8 | 0.64 - 0.89 | S114P03, S114P04 | Single-notch | 4.1 |
| MIP-3100-34 | 19 | 0.64 - 0.89 | S34S03, S34P03 | Double-reverse notch | 5 |
| MIP-3100-114 | 31.8 | 0.64 - 0.89 | S11403, S11P04 | Double-reverse notch | 5 |
